Детали продукта
Место происхождения: Китай
Фирменное наименование: Suntor
Сертификация: CE
Номер модели: PB33
Условия оплаты & доставки
Количество мин заказа: 1 шт.
Упаковывая детали: Упаковочная коробка
Время доставки: 10-15 дней
Условия оплаты: Т/Т
Поставка способности: 5000ПК/месяц
Частота Woking: |
1438 МГц |
RF передает силу: |
2 Вт |
NLOS расстояние: |
300-500m |
Расстояние ЛОС: |
10-20 км |
Безопасность: |
AES256 |
Источник питания: |
DC 14.8V |
Размер: |
52.5*43.7*21.3mm |
масса: |
14.8KG (включите батарею) |
Частота Woking: |
1438 МГц |
RF передает силу: |
2 Вт |
NLOS расстояние: |
300-500m |
Расстояние ЛОС: |
10-20 км |
Безопасность: |
AES256 |
Источник питания: |
DC 14.8V |
Размер: |
52.5*43.7*21.3mm |
масса: |
14.8KG (включите батарею) |

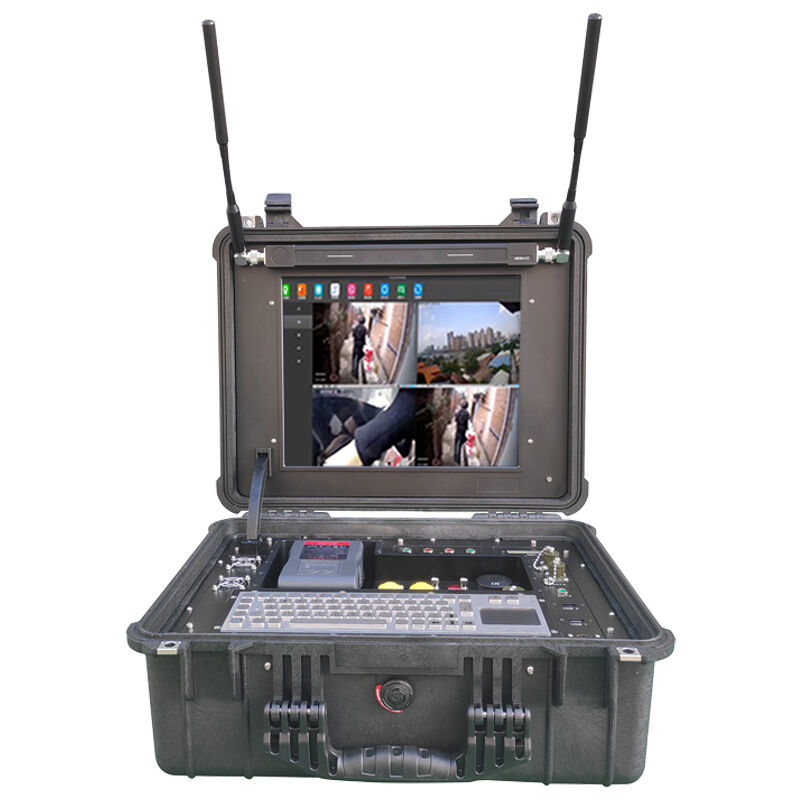

The Intelligent MESH Communication System Command Station is a portable, multi-functional emergency command and dispatch system developed by SUNTOR ELECTRONICS CO., LTD. This advanced device features flexible networking capabilities and user-friendly operation, making it ideal for various emergency scenarios.
Quickly establish temporary command centers for emergency situations, enabling on-site and remote command dispatch, video conferencing, private network access, and public network connectivity. Provides robust support for emergency command operations and information reporting.
| Host Characteristics | |
|---|---|
| Operating System | WIN10/64 bit |
| CPU | Intel I7 CPU |
| Display Screen | 17inch HD Bright Screen |
| Memory | 16G |
| Storage Mode | 240G SSD |
| Operating Mode | Embedded Mouse and Keyboard |
| Transport Characteristics | |
| Frequency Range | 1438MHz (200MHz-1.5G customizable) |
| Bandwidth | 5M/10M/20M (adjustable) |
| Transmit Power | Max 33dBm |
| Constellation Map Modulation | BPSK/QPSK/16-QAM (adaptive) |
| Forward Error Correction Code | 1/2, 2/3, 3/4, 5/6 (optional) |
| Digital Sensitivity | Max -97dBm@1MHz |
| Transmission Rate | Peak rate up to 90Mbps |
| Networking Capacity | Over 9 chain hops, supports 52+ nodes |
| Data Characteristics | |
| RF Interface | N*2, SMA*1 |
| Video Display | 17inch HD Bright Screen |
| Cable Interface | RJ45 Waterproof Interface *2 |
| Intercom Interface | 6 Pin Aviation Plug |
| Data Interface | 3 Pin Aviation Plug (backup) |
| Power Interface | 2 Pin Aviation Plug |
| 4G Function | All Netcom |
| Signal Indicator | 5 Signal Indicators |
| Switch | Toggle Self-locking Switch |
| Encryption Mode | DES (default) AES128 / AES256 (optional) |
| Electrical Characteristics | |
| Operating Voltage | DC 14.8V |
| Operating Current | ≤ 7A |
| Power Consumption | Average 60W |
| Battery Capacity | 10Ah |
| Physical Characteristics | |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -50°C to +70°C |
| Dimensions | 52.5 × 43.7 × 21.3 cm |
| Device Weight | 14.8kg (including battery) |
Widely used in various emergency scenarios including power emergency repair, unmanned remote control, public security emergency control, maritime reconnaissance, fire emergency rescue, and safety production supervision.
We are a factory specializing in Wireless Video Transmitter solutions.
Yes, we accept sample orders for evaluation.
We offer 1-year warranty. For goods defective due to non-personal reasons, we will provide replacements.
We accept T/T in advance with 100% payment before production.
Typically 10-15 days, depending on order quantity and specific requirements.
